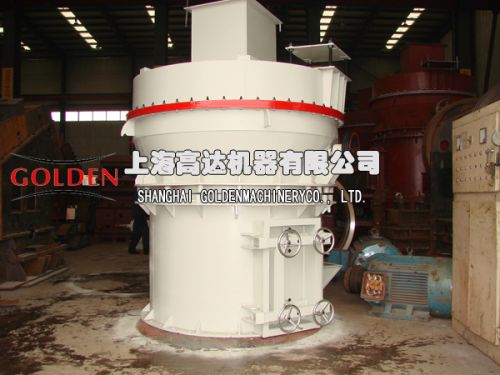

GTM Medium Trapezium Grinding Mill

We offer GTM medium trapezium grinding Mill.
The operation principle of main unit of GTM Medium Speed Trapezium mill is that main unit runs with the central shaft that is driven by a gear box. The top of the shaft is connected with a quincunx stand on which a grinding roller is installed to form a swing support. The grinding roller not only rotates around the central axle and grinding ring but also rotates around its own axle due to the friction. There is a pallet knife system at bottem of quincunx stand. The pallet knife system is under the grinding roller. With co-rotation of pallet knife and grinding roller, pallet knife will lift the materials into the space between roller and ring to to form a material layer. The materials will be grinded due to the centrifugal force of roller and thus finally achieve the aim of making powder.
Structure
The standard configuration of GTM Medium Speed Trapezium mill includes main frame, classifier, decelarator, duct fan, bag duct collector, pipe connection, cyclone power collection device, motor and so on. The optional corollary equipments are jaw crusher, elevator, feeder electrical cabinet, etc. GTM-320 4 Ø320x200 Ø980x200 25 1.6-0.033 3-8.8 37 7300X5920X8310
GTM-410 5 Ø410x240 Ø1320x240 30 1.6-0.033 6-13 75 9280X7350X9730
GTM-440 6 Ø440x270 Ø1600x270 35 1.6-0.033 13.0-22.0 12.0-18.0 10.0-17.0 132 12600X5790X8368
