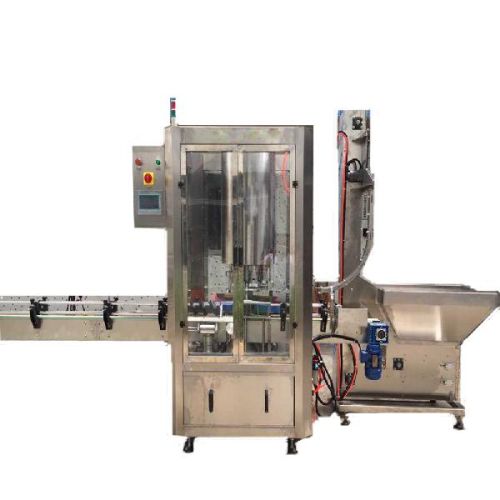

Guangzhou High Speed Full Automatic Rotary Capping Machine

Feature:
1)full automatic rotary capping machine is unscrambled lid,conveying lid,conveying bottle and capping,it's using the cover positioning screw cap,the whole machine is a rotary structure.

2)in the process of the screw cap, there is no damage bottle,high efficiency, high qualified rate, smooth operation and wide use,which can be compared with similar products abroad.

3)this machine is suitable for all kinds of rules glass or plastic bottle of all kinds of outer cover automatic twist, use the grab cover to grab the various lids that are conveyed by the scraping plate, and complete the outer cover in the bottle turning process.the whole machine adopts plc control, hmi, convenient and easy to operation.


technical date:
bottle diameter 40-100mm
bottle height 80-250mm
cap diameter 15-50mm
cap height 15-35mm
pressure range 0.6-0.8mpa
capping head 12 heads
screwing speed �10000 bottleshour
weight 1600kg
host dimension 3500*1360*2100mm
screwing precision �99.8%(depend on the material)

rack configuration:
1)rack: the bottom plate is high precision carbon steel thick plate and thickened square tube, and after welding, it is treated with anti-rust, and the 304 # stainless steel plate is outsourced.

2)main accessories: stainless steel, anodized aluminum alloy, engineering plastics.

3)conveyor belt: the side board adopts 2.5mm 304 # stainless steel plate bending, the conveyor chain is the engineering plastic pom material, the driving shaft, the passive shaft adopts stainless steel shaft processing, the conveyor belt supports the round tube welding by 304 stainless steel.

4)the protective cover use toughened glass.

5)electric box and mechanical working area are equipped with led lighting, easy to maintenance and operation, each machine is equipped with the sound light alarm lamp column.
