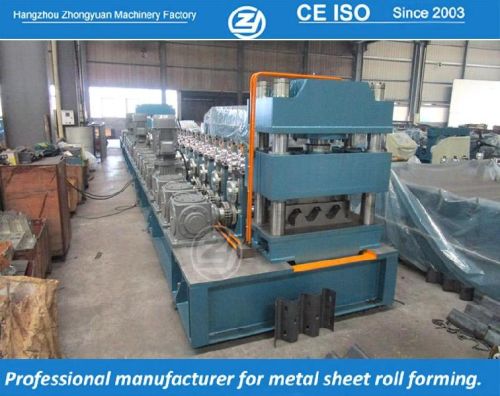

Guardrail Roll Forming Machine, Brand Name : Zhongyuan

Guardrail roll forming machine
technical data of guardrail roll forming machine
suitable material cold-rolled steel strip and heat-treated galvanized steel strip
thickness of raw material 3.0-3.25mm (235-345mpa)
material of roller cr12 mould steel being quenched treatment,hrc58-60
material of cutter blade& punching die cr12 mould steel with quenched treatment, hrc58-60
material of shaft high quality 45# steel with heat treatment.roller grinder milling.
Power requiremen main motor power: 3x15 kw(depend on final design)
hydraulic station power: 11kw (depend on final design)
controlling system mitsubishi plc & converter
quantity of rollers about 22 stations for main rollers
weight of machine   about 33000kgs
size of machine about 15.3mx1.9mx2m
gearbox transmission system moves the line to ensure machine strong enough to run raw material thickness 3.0mm
we can supply the high quality sandwich panel production line, metal roll forming machine, cladding forming machine etc. When machine must be delivered immediately, depending on customer's features, we can manufacture and deliver machine in only 5-8 weeks.
