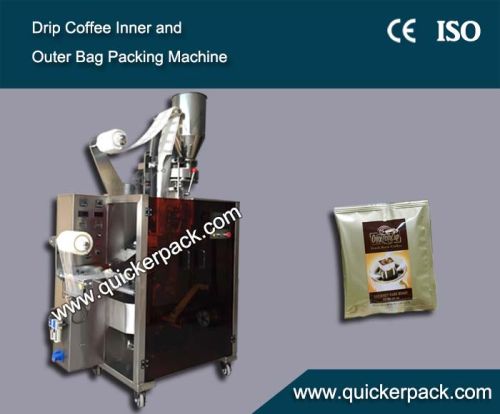

Guatemala Drip Coffee Packing Machine With Outer Envelop

Application:
It is suitable for 5 to 15gram drip coffee inner and outer bag packaging.
Features:
1.Outer bag sealing is controlled by the stepper motor, ensuring accurate and stable bag length positioning.
2.Adopts PID temperature controller for more accurate temperature adjustment.
3.Adopts PLC control system and touch screen color monitor device, machine is very easy to operate.
4. The main machine parts is made of SUS304 stainless steel, so it ensures hygiene products output.
5. Some cylinders are imported, ensuring the accuracy and stability of the machines' performance.
6. It can make the inner and outer bag at the same time automatically, which would highly improve the working efficiency.
7. Adopts automatic conveyor system.
8. Options: Date code printer.
Standard Technical Data:
Bag type: Ultrasonic sealing
Packing material: PaperPlastic, PlasticAluminumPlastic, PaperAluminumPlastic, Filter paper
Feeding system: Volumetric cup filler
Package range: 5-15g
Inner bag size: L:50-75mm , W:50-90mm
Outer bag size: L:85-120mm , W:75-100mm
Inner bag film width (180mm): Bag size: L90mm*W75mm
Outer bag film width(200mm): Bag size: L120mm*W100mm
Power supply: Single phase, 220V, 50HZ, 3.7KW
Packing speed: 30-60bagsmin
Machine weight: 400KGS
Machine dimension: 1200*900*1900mm (L*W*H)
