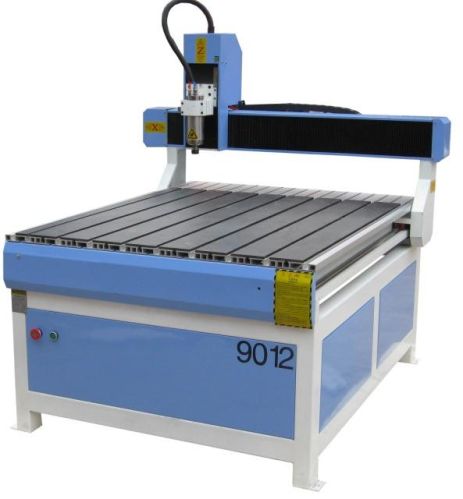

Guitar CNC Router Machine

We are offering guitar cnc router machine
machine.
features:
1. Heavy duty machine body without vibration
2. C5 class tbi ball screw drive
3. Heavy t slots aluminum working table
4. High speed dsp offline control system
parameter of guitar cnc engraving machine:
cnc router em9012
items parameters
working areas x 900mm
y 1200mm
z 200mm
transmission
systems x c5 class tbi ball screw drive
y c5 class tbi ball screw drive
z c5 class tbi ball screw drive
guide rails
system x hiwin linear square rails
y hiwin linear square rails
z hiwin linear square rails
spindle power 2.2kw
speed 24000rpm
cooling type water cooling
origin jiangsu, china
drive systems x stepper motor with driver
y stepper motor with driver
z stepper motor with driver
servo motors and drivers(optional) panasonic/yaskawa
working tabe heavy duty 3mm aluminum t slots working table
machine body welded structurer steel pipe
software envorionment windows98/2000/xp
control systems dsp offline control system
compatible files format g code; u00; mmg; plt
compatible software ucancamv8/type3/artcam
working voltage ac220v/50-60hz 1phase
table size 1200*1400mm
max travel speed 8m/min
max engraving speed 5m/min
interface type usb
dust absorption dust collector(optional).
