Guqi Q Head Q Switch

Ordinary 1064nm laser wavelength standard acousto-optic Q switch

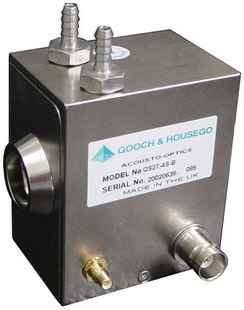

QS27 is industrial standard acousto-optic Q switch, can be widely used in lamp pumped and diode pumped 1064nm of Nd: YAG laser and diode side pump laser marking machine.
"How to choose appropriate acousto-optic Q switch"
Main technical parameters
â?¢ working medium: melting silicon Fused Silica
â?¢ laser wavelength: 1064nm
â?¢ increasing reverse coating: multilayer dielectric hard membrane
â?¢ through rate: > > 99.8 per cent (typical 99.9%)
â?¢ membrane layer damage threshold: > 1gwof cm - 2
â?¢ insertion loss:
â?¢ VSWR:
â?¢ maximum driving power: 100W
â?¢ overheating protection point: + 50 degrees
Water-cooled requirements
The water velocity: > 190cc/min
Water temperature:
Working temperature:
- the highest temperature: 40 degrees
Model and options
QS
24
- 4
S
- B - X X n
Q switch
Driving frequency
The optical aperture (mm)
Ultrasonic model
Water joint form
other
â?¢ driving frequency 24MHz, 27MHz, 41MHz: 80MHz, 68MHz or
â?¢ the optical aperture: 2, 3, 4, 5, 6.5 or 8mm (usually and use yag.the as big or bigger bar diameter 1mm)
â?¢ ultrasonic mode: C - Compressional compression type, S - Shear cut should type
â?¢ water joint form: s-type water joint, type B water joint, R type water connector
