Contact Supplier1. Features

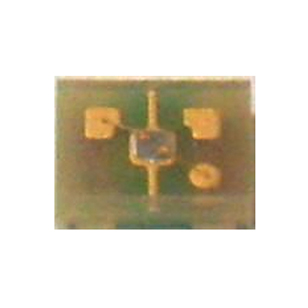

gallium nitride based material
schottky-type photodiode
photovoltaic mode operation
good visible blindness
high responsivity & low dark current
2. Applications
uv index monitoring
uv-a lamp monitoring
3. Absolute maximum ratings
storage temperature: -40~90℃
operating temperature: -30~85℃
reverse voltage: 5v
forward current: 1ma
optical source power range: 0.1µ~100m wãŽ
soldering temperature: 260℃
4. Characteristics (at 25℃)
dark current: 1na max
temperature coefficient: 0.08%℃
responsivity: 0.14aw
spectral detection range: 240~370㎚
active area: 0.076㎟
