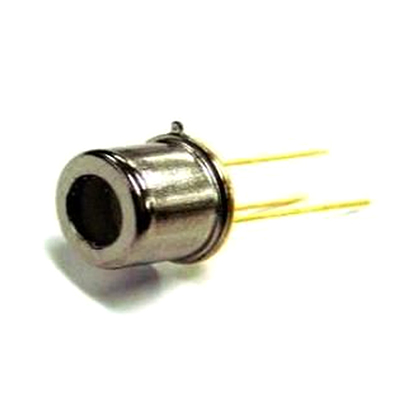

GUVB-T21GD-U UV Sensor, Brand Name : Genicom

Get Latest Price

MOQ1 Piece(s)
Brand NameGenicom
Country of OriginSouth Korea
Number Of FlowerUV Sensor
Operating Temperature-30~85℃
Supply TypeExporter, Supplier
Preferred Buyer Location All over the world

View More Details

Company Information

Member Since 8 Years
Nature of Business Exporter
Year of Establishment 2014

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Country of OriginSouth Korea
Number Of FlowerUV Sensor
Brand NameGenicom
Operating Temperature-30~85℃
Model NumberGUVB-T21GD-U
Dark Current(Max.)90nA
Spectral Detection Range220~320nm
Responsivity0.13A/W

1. Features
aluminium gallium nitride based material
schottky-type photodiode
photovoltaic mode operation
good visible blindness
high responsivity & low dark current
2. Applications
uv-b lamp monitoring
uv-b led monitoring
3. Absolute maximum ratings
storage temperature: -40~90℃
operating temperature: -30~85℃
reverse voltage: 3v
forward current: 1ma
optical source power range: 0.001µ~100m wcm2
soldering temperature: 260℃
4. Characteristics (at 25℃)
dark current(max.): 90na
photo current(typ.): 7.4µa
temperature coefficient: 0.1%℃
responsivity: 0.13aw
spectral detection range: 220~320nm
active area: 6.89mm2
