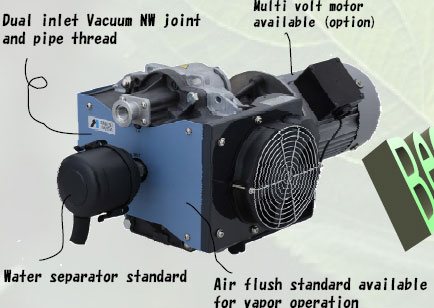

GVS Series Oil Free Scroll Vacuum Pump

We are dependable providers of GVS Series Oil Free Scroll Vacuum Pump. Our GVS Series Oil Free Scroll Vacuum Pumps ensure noiseless operation. The durable construction of the GVS Series Oil Free Scroll Vacuum Pump enables its long life. Stringent quality checks are performed at every stage of manufacturing the GVS Series Oil Free Scroll Vacuum Pump.
Salient Features :

• High vacuum : 250 Pa ultimate pressure. Keep good vacuum level for long time operation.
• Low noise : Orbiting movement makes soft noise.
• Long life : Only annual maintenance interval for Standard usage.24-hours operation available
• Maintenance : After sales service network for all major market is available and one of our quality
• Air cooling : No need to change oil or cooling water because of air cooling system

Applications :

• Vacuum Chuck
• Degassing
• Vacuum Transport
• Vacuum Drying
• Vacuum Forming
• Vacuum Packing
• Gas Substitution
• Leak Test

Options :

• Control Box
• Hour Meter
• Filter

Precaution on Usage :

• This vacuum pump is suitable for use on clean processes only.
• Do not use explosive, flammable, toxic or corrosive substances or substances which contain chemicals, solvents or particles. We will not perform maintenance work on pumps which have used hazardous substances.
• Do not disassemble, reassemble or alter pump and parts on user's side.
• Be sure to read instruction manual and understand it fully before use.
• Once maintenance interval has been reached, be sure to contact our distributor who sold it to you.
• The guarantee period is based on instruction manual. Maintenan ce interval and the guarantee period are different.
• Please contact our vacuum pump department before exporting pumps which are shown on this catalog to outside of Japan

Precaution of Installation :

• Danger of explosion and fire
• Install in an area which is not exposed to explosives, flammable gas, or other related things. Pumps which are shown in this catalog do not have breaker for avoiding motor burnout by installing. Avoid motor burn out using breaker.
• Electric source cord is not included in the pump. Use electric source cord which is instructed by instruction manual
• This vacuum pump is required maintenance by interval which is shown on the instruction manual.
• Install the pump where it has enough ventilation and available maintenance.



Specifications

Model GVS-500 GVS-501 Displacement 423 L/min(50Hz) 505 L/min(60Hz) Ultimate pressure �250 Pa Noise level 64 dB(A) Motor power 1.2�1.5 kW Voltage 3 Phase Local voltage Connection InletNW25(Rc1/2) Outlet(Rc1/2) Ambient temperature 5�40^o(in house) Weight 39 kg Dimension W 317mm D 585mm H 289mm Material of back up seal Silicon rubber Fluoro rubber
