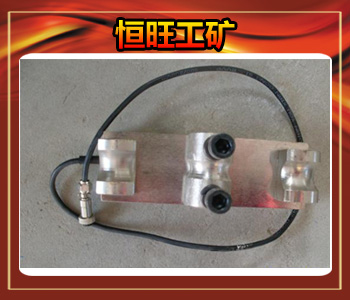

Gvy200 Mine Tear Sensors

We are offering gvy200 mine tear sensors.
Gvy200 torn sensor is intrinsically safe mine, in the coal mine gas, coal dust in the dangerous environment of explosive gas, and mining belt conveyor with comprehensive protection systems. Used as adhesive tape tearing protection device of belt conveyer,it can also be used to ground the explosion proof and places that have requirements of belt conveyor.
Performance characteristics
when the action force reaches 20 n + 3 n (100 cm) pressure, sensor action, the output value of 2 k or less ω, no material output resistance ω 1 m or more, when the output resistance is 2 kω or less, through comprehensive protective device of belt conveyer signal tape tearing, and delay 1 s ~ 2 s control host machine downtime.
Technical parameters
model: gvy200.
Explosion-proof type: exib ⅰ.
On resistance: 2 kω or less.
Disconnect the resistance: 1 mω or higher
action capacity: 20 n + 3 n
dimensions: 1200mm*310mm*45mm
weight: 18.5 kg
