Model gxm13ap-w

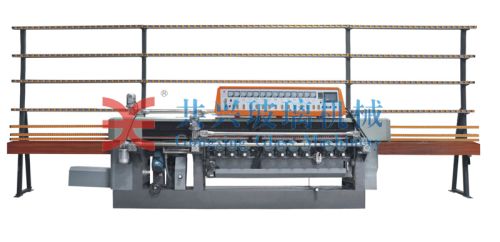

glass straight line beveling and edging integrated machine
this is our latest research & develop machine. It can be finished processing the bevel edge andor straight-line edge in one machine.
1) 13 spindles.
2) bearing transmission structure on front and back conveyor pad.
3) advanced frequency control technology siemens motor on transmission.
4) siemens plc for control, man-machine interface for operation.
5) multiple historical operating parameters can be stored and called simultaneously.
6) glass bevel edge, roundstraight bottom edge can be processed at the same time.
7) front beam lifting function.
specifications:
min. Glass size: 40mm
max. Glass size: 3×3m
grinding speed: 0.5~10 mmin
processing thickness: 3-19 mm
angle range: 2°-45°
max. Bevel width: 40mm
power: 29.5kw
dimension: 7.32×1.4×2.6m
total power: 7000kg
