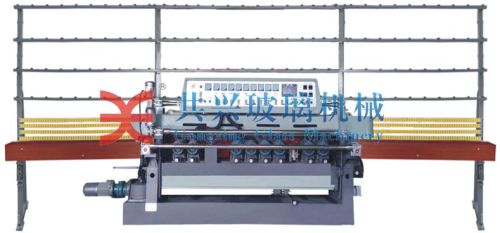

GXM9A-W Glass Wave Beveling Machine, Brand Name : Gongxing

Model gxm9a-w glass wave beveling machine
features and configurations:
1) 9 spindles.
2) mainly used for processing the general size of straight line bevel edge and wave bevel edge, and also small piece of straight line bevel edge of flat glass.
3) plc controlled.
4) drove by servo motor.
5) equipped 45 degree swing angle.
6) back board auto cleaning function.
7) spindles advancedretreated together, and display the value.
8) front beam lifting function.
Technical parameters:
min. Glass size: 20ã�20mm
max. Glass size: 3ã�3m
grinding speed: 0.5-3mmin
glass thickness: 3-12mm
angle range: 2â°-45â°
max. Bevel width: 25mm
power: 21.1kw
dimension: 6.46ã�1.21ã�2.54m
total weight: 4000kg
