Gyts Loose Tube With Steel Type Armored Pe Sheath Optical Fiber Cable

We offer gyts loose tube with steel type armored pe sheath optical fiber cable.
Specifications
gyts
1.shield with aluminum tape
2.suitable for aerial or duct installations
3.cable capacity from 2~288 fibers

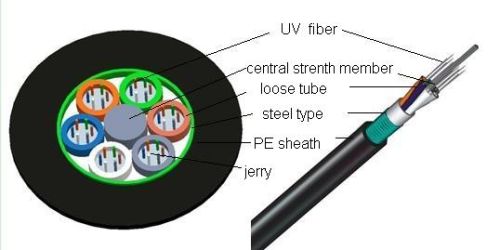

1. Structure description:
metal strength member, central tube type, gelly filled, polyethylene(pe) sheath, psp armor and
polyethylene(pe) outer sheath, outer door optical fiber cable for telecommunication.
2.performance:
application long haul and building network communication
min bend radius(mm) long-term 10d
short-term 20d
operating temperature (oc) -40~60
the way aerial duct
3.features
l high quality optical fiber provides good transmission performance
l accurate fiber excess length control ensures excellence mechanical and temperature
performance
l strict craft and raw material control for cable stably operating over 30 years
l the sturcture of all section water blocking and longitudinally armored with both side coated
steel tape provide good performance of moisture-proof and water blocking
l special filling gel filled loose tubes provides optical fiber protection
l corrosion resistance phosphated steel wire with high young's module as the central strength
member
