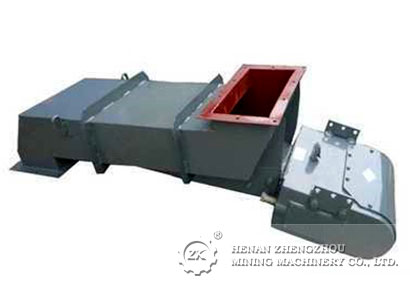

GZ Series Electromagnetic Vibrating Feeder

Gz series electromagnetic vibrating feeder is mainly used for evenly, continuous and quantitative feeding for lump type, particle type and powder type materials, which is from storage silo and other storage equipment to receiving device with automatic feeding volume adjustment control. The series of feeder have the features like simple structure, easy operation, no need lubrication, low energy consumption and homogenous feeding volume, which can be applied to mine, metallurgy, construction, light industry, chemical, electricity, machine and grain industry.
Application:
the feeder can be applied to various type(particle type, powder type) materials’ feeding on electricity, chemical, metallurgy, construction, light industry, grain and mine industry.
Feature and advantage：
1.advanced vibration mechanism with low energy consumption because of working on low critical near resonance state;
2.adopt silicon controlled rectifier half-wave rectifier control method, when operating, automatic control can be realized by adjust the development angle of silicon controlled.
3.due to the instantaneous change or opening and closing for material flow, the feeding volume with high accuracy.
4.when operating, material will been throw up continuous, then jumping forward with parabolic trajectory, so that have less abrasion to screen cell.
5.widely application, alloy screen cell feeder can used for conveying wear and corrosive materials, sealing structure feeder can used for high pollution and easy to dust material.
6.feeder with features like small overall size, light weight, simple structure, no need lubrication and easy to maintenance.
Gz series electromagnetic vibration feeder is mainly composed with material tank, electromagnetic vibration exciter, damper spring and control box, the features are showing as below:
