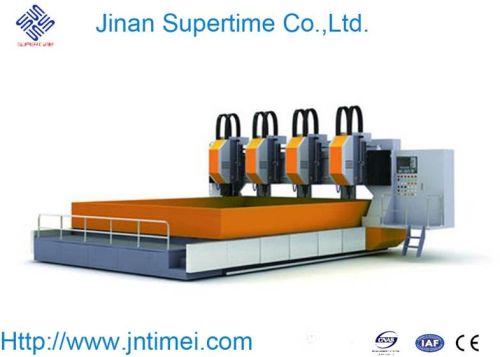

Gzc Series Gantry Movable CNC High Speed Drilling Machine

We are offering gzc series gantry movable cnc high speed drilling machine.
1)mainly used to drill flange,heat-exchanger,tube-sheet and the inner and the outer ring of big slewign bearing ring.
1)mainly used to drill flange,heat-exchanger,tube-sheet and the inner and outer ring of big slewing bearing ring.
2)precision spindle,high speed drilling with slight milling function.
3)diretly transfer of cadcam,automation and high precision can be realized.
product feature:
1)spindle box of the machine are daopted cast iron formed resin bonded sand process and reasonable layout of ribs to provide good stiffeness and steadiness.
2)movable slides are equipped on the cross beam of fantry.the slides are guided by wto linear roller guide pairs and drven by ac servo motor and preise ballscrew pair of big pitch respectively.
3)electical system:
it adopts spainish fagor8055 cnc system,equipped with rs232 interface and lcd screen.it can fulfill cadcam directly transfer and also you can preview and re-check the hole position before drilling,operation is very easy.
