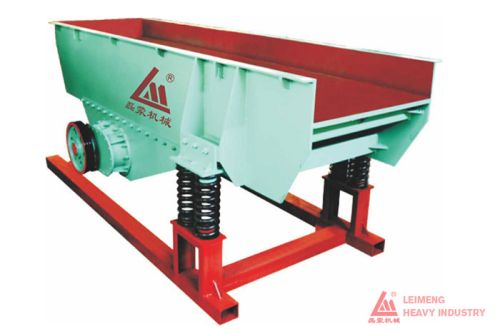

GZD ZSW Series Vibrating Feeder

GZD ZSW Series Vibrating Feeder
Type: Vibrating feeder
Input size: 300-600mm
Processed Materials:
Concrete waste, iron ore, copper ore, gold ore, manganese ore, gravel, granite, river stone, basalt, limestone, dolomite, quartz, coal, etc.
Applications:
Mining, metallurgy, construction, highway, railway, and water conservancy, etc.
Description
We have two type feeders, one is vibrating feeder, another is line feeder，Vibrating feeder with two motors, the user adjust the vibration frequency to control the feeding speed, keep the whole production line working smoothly. Line feeder’s characteristics: smoothly, working reliable, long-life working etc.
Our feeders can feed continuity and evenly, rough sizing. It is widely used in crushing&screening  production line for mining, construction, silicate, chemical industry.
Vibrating feeders can feed continuity and evenly, rough sizing, it is widely used in crushing & screening production line for mining, construction, silicate,chemical industry.
Specifications
Model Manger size
(mm) Max.feeding
(mm) Handle ability
(mm) Motor (kw) Weight (t) Size (mm)
GZD250 * 75 2500 * 750 300 50 - 80 1.5*2 1.5 2580 * 1430 * 600
GZD300 * 90 3000 * 900 450 80 - 100 3*2 3.5 3050 * 1580 * 750
GZD370 * 100 3700 * 1050 500 100 - 150 3.7*2 4.5 3980 * 1878 * 866
GZD490 * 110 4900 * 1100 580 120 - 280 5.5*2 5.8 5200 * 1900 * 950
GZD500 * 120 5000 * 1200 600 200 - 400 5.5*2 7 5450 * 2000 * 1000
ZSW380 * 96 3800 * 940 500 100 - 160 18.5 5 3800 * 1540 * 1660
ZSW190 * 110 4900 * 1100 580 120 - 280 22 6 4900 * 1700 * 1660
ZSW590 * 110 5900 * 1100 600 200 - 350 30 7.2 5900 * 1840 * 1900
ZSW600 * 130 6000 * 1300 600 400 - 560 37 9 5980 * 2050 * 1950
Advantages & Characteristics
Simple and reasonable structure
Easy maintenance
Continuous and uniform
