H.264 4-channel DVR

We are offering h.264 4-channel dvr with built-in lcd monitor.

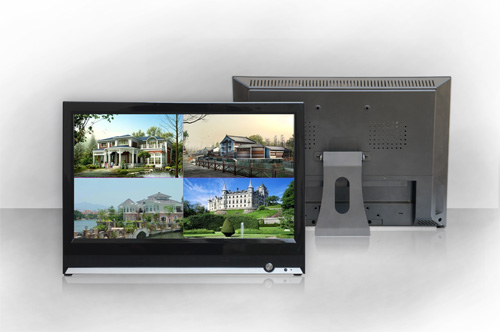

h.264 4-channel dvr with built-in lcd monitor
features
1.h.264 compression format.
2.8 d1 quality real-time monitoring with 2000gb hard disk.
3.support network access and 3g networks
4.come with a 19-inch lcd screen
5.support for usb mouse operation and remote control
6.ultra-thin design, the appearance of new aesthetic, quick and easy installation, good ultra-quiet cooling fan.
7.suitable for embedded the structure design (combination of curtain wall installation), wall, ceiling-mounted, desktop stand installed.
8.wide voltage range of 100vac ~ 240vac (50/60hz), normal work
9.low energy consumption, energy saving and environmental protection, low heat, suitable for long hours.
specification
19 inch dvr lcd monitor(plastic case)
specification
display size
19"w
active area
410.4mm(w)*256.5mm(h)
aspect ratio
16:10
lcd moduletft-lcd
tft-lcd
max resolution
1440*900
displa color
16.7m
brightness(nits)
300cd/m²
brightness
500:1
viewangle
85°/85°/85°/85°
response time
8ms
vertically scanfrequency
50hz,60hz,70hz,
built-in windows system
linux
video input system
pal / ntsc
playback
1*d1, 3*cif( or 1*d1, 7*cif)
composite video lnput
4 channel (bnc*4,up to 8)
composite video out
1 channel (bnc*1)
audio input
1(rca*4,up to 8)
audio output
1(rca*1)
rj45 net lnput
1
usb backup port (surpport mouse)
2, surpport up to 320g
alarm input
2
alarm output
1
485 input
1
sata hdd surport:
1, up to 2t
code
pal:100fps,ntsc:120fps
ie control and ddns function
ie/pppoe/ddns
osd language
multi
power requirement
dc 12v/6a
powerconsume(max)
≤60w
product size
