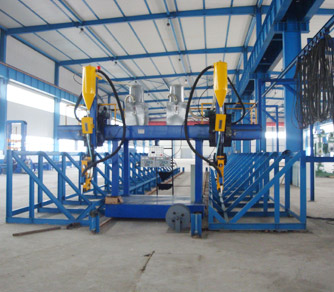

Contact SupplierWe are offering h-beam automatic welding machine
there lha gantry type, lhc cantilever type automatic welding machine and lht double column-beam automatic welding machine.
It adopts a.c.inverter control, with functions of stable running and fast traveling speed; the seam-tracking arc-guide mechanism is three-spindle system to guarantee the alignment without aberrancy; the main frame and welding machine are intergrated control, with flux auto-recovering system and it is easy to operate with high efficiency.
Lht double column-beam automatic welding machine can weld two pieces of beam at the same time, and the web height of beam is not limited by main machine.
Applied flange width 200-800mm
applied web height 200-1500mm
beam length 4000-15000mm
rail span 4000mm
rail length 18000mm
welding speed 120-1200mmmin
welding position vessel position
wire size 3.2Ã��Ã�£Ã�¯Ã�¿Ã�½Ã��Ã�¢Ã��Ã�¯Ã��Ã�£Ã�¯Ã�¿Ã�½Ã��Ã�¢Ã��Ã�¼Ã��Ã�£Ã��Ã�¯Ã��Ã�¢Ã��Ã�¿Ã��Ã�¢Ã��Ã�½5mm
flux recycling system 100kg*2
main machine power 9kw (excluding two saw welders
