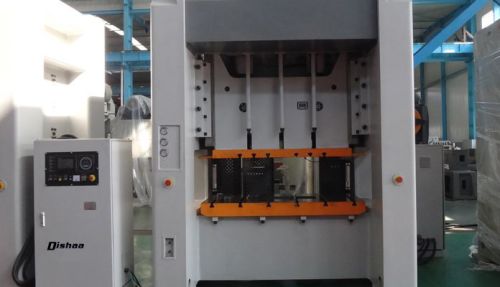

H Frame Mechanical Presses

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Main Features of Double-Point Mechanical Press JIS I accuracy. Steel welded frame. Double crankshafts reverse rotated to eliminate lateral force. Combined wet friction clutch. Octahedral lengthened....

View More Details

Send Enquiry

Company Information

DISHAA ENGG. & AUTOMATIONS LLP.

Thane West, Thane, Maharashtra

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Main Features of Double-Point Mechanical Press

JIS I accuracy.
Steel welded frame.
Double crankshafts reverse rotated to eliminate lateral force.
Combined wet friction clutch.
Octahedral lengthened gib.
Hydraulic overload protector.
Elec. adjustment with digital display.
Lifting balance cylinder.
Imported dual solenoid valve.
Elec. oil lubrication.
Balance cylinder: manual oil lubrication.
Integrated panel (elec. cam included).
PLC control.
Ejector.
Optional: air cushion (air bag or cylinder type), light curtain, NC feeder, motor with inverter.

Specifications of Double-Point Mechanical Press

Model			SP2-315T	SP2-400T	SP2-500T	SP2-630T
Nominal Force		kN	3150	4000	5000	6300
Nominal Stroke		mm	8	10	10	10
Slide Stroke		mm	280	280	280	280
SPM	Fixed	min-1	25	20	18	18
SPM	Varoanle (Optional)	min-1	20-30	18-25	15-20	/
Max Die Height		mm	600	650	700	800
Die Height Adjustment		mm	120	120	120	120
Bolster Area (FB×LR)		mm	1000×2400	1100×2500	1200×2900	1300×3000
Bolster Thickness		mm	190	200	210	220
Slide Area (F·B×L·R)		mm	900×2100	1000×2200	1100×2600	1200×2800
Shank Hole (Dia.×Depth)		mm	3-φ70×95	3-φ70×95	3-φ80×100	3-φ80×100
Side Opening (F·B×H)		mm	900×500	1020×550	1040×600	1200×700
Between Columns		mm	2600	2700	3100	3300
Distance Between Bolster Surface & Floor		mm	1120	1120	1150	1160
Main Motor Power		KW	37	45	55	90
Outline Dimension (F·B×L·R×H)		mm	3420×3500×4665	3620×3620×4650	4100×4060×4900	4100×4250×5800
Outline Dimension (F·B×L·R×H)		mm	3420×3500×4665	3620×3620×4650	4100×4060×4900	(Above Ground)
Net Weight		Kg	47000	51000	67500	95000
