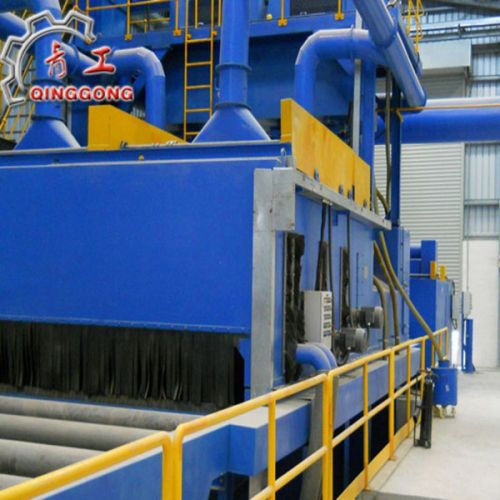

H Section Shot Blasting Machine

Qinggong h section shot blasting machine is used for de-scaling, de-rusting, paint removal, paint preparation and general cleaning of metal sheets, pipestubes, i-beams and weldments. Optimum blast results are achieved on thin gauge aluminum profiles as well as on heavy steel profiles and steel slabs. Standard roller conveyor machines can process parts from 600 up to 5,000 mm width with roller conveyor speeds from 0.5 to 4.0 mmin. High performance systems allow parts speeds of up to 7.5 mmin. The quantity of blast wheels and their position ensures optimum blast results. The thrown blast media is collected with screw conveyors and transported to the media hopper through an elevator, screen drum or tilting screen and air wash separator. The machine width, number of blast wheels and their location is determined by parts size and production speed. Standard systems are used for processing metal sheets and beams. Standard systems are frequently modified to allow processing of welding constructions of different sizes and geometries.
applications
surface preparation beams, metal sheets, pipestubes, slabs, welding constructions
smoothing pickled or eroded surfaces, machining lines, etc.
Decorative blasting light metals, stainless steel, copper, brass, etc.
Peening parts exposed to high stress, torsion bars, etc.
De-burring flame cut, sawed and stamped parts
parameter q698 q6912 q6915 q6920
the effective cleaning width(mm) 800 1200 1500 2000
the dimension of chamber feed inlet (mm) 1000*1500 1400*1700 1700*1700 2200*1800
the length of cleaning workpiece(mm) 1200-12000 1200-1600 1200-12000 1200-13000
the speed of wheel conveyer(mmin) 0.5-4 0.5-4 0.5-4 0.5-4
abrasive flow rate (kgmin) 8*180 8*180 8*250 8*250
abrasive initial filing capacity (kg) 4000 5000 5000 6000
air capacity(m3h) 22000 22000 25000 25000
total power (kw) 110 130 180 180
