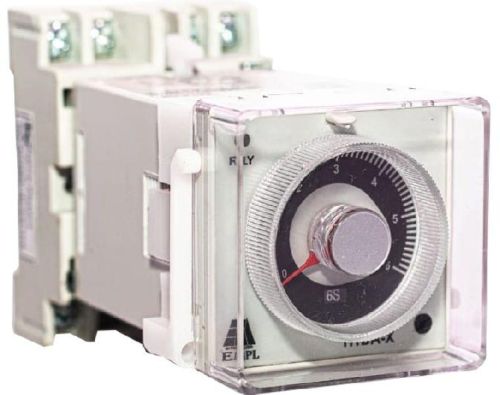

H-Series Electronic Timer

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Features : LED indication for timing in progress Front protective cover for safety. Timer and base available for Track(except H3D1). Large transparent knob with lock is provided for precise time....

View More Details

Send Enquiry

Company Information

Golden Electronics

Vedvyas, Rourkela, Odisha

4.0/5

(1)

View Number

Member Since 11 Years
Nature of Business Manufacturer
Year of Establishment 1995

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Features :

LED indication for timing in progress
Front protective cover for safety.
Timer and base available for Track(except H3D1).
Large transparent knob with lock is provided for precise time setting and protect from unintentional change of time setting.
H1DA-X : Accepts any voltage from 12V AC/DC to 240V AC / 220V DC as signal between command contacts for timing initiation.
H1D1-X, H3D1: Multifunction-On-Delay / Interval / Equal Cyclic-On / Equal Cyclic-Off programmable.

Applications : Textile machines, Vending machines and many more.
Dimensions :

Over-all: 45 X 75 X 116mm (W X H X D).
Cut-out: 46 X 46mm (W x H)

Regular Models

Model	Function	Source Voltage		Time Selection		Output		CSA Approved	Over-All Dimensions		Cut-Out Dimensions
H3D1	Multifunction (8 terminals) screw type	24V to 240V AC ,24V DC to 220V DC		0.3Secs to 60Mins		2 C/o Relay			48 x 48 x 94 mm (W X H X D)		46 x 46 mm (W X H )
H1D1-X(CSA)	Multifunction (11 Pin) plug-in type	24V to 240V AC ,24V DC to 220V DC		0.3Secs to 60Mins		2 C/o Relay		Yes	48 x 48 x 94 mm (W X H X D)		46 x 46 mm (W X H )
H1DA-X	Signal Off-Delay (11 Pin) plug-in type	24V to 240V AC ,24V DC to 220V DC		0.6Secs to 60Mins		2 C/o Relay			48 x 48 x 94 mm (W X H X D)		46 x 46 mm (W X H )
H1DT-10(CSA)	On-Delay (11 Pin) plug in type.	24V to 240V AC ,24V DC to 220V DC		1Secs to 10Secs		2 C/o Relay		Yes	48 x 48 x 94 mm (W X H X D)		46 x 46 mm (W X H )
H1DT-30(CSA)	On-Delay (11 Pin) plug in type.	24V to 240V AC ,24V DC to 220V DC		3Secs to 30Secs		2 C/o Relay		Yes	48 x 48 x 94 mm (W X H X D)		46 x 46 mm (W X H )
H1DT-60(CSA)	On-Delay (11 Pin) plug in type.	24V to 240V AC ,24V DC to 220V DC		6Secs to 60Secs		2 C/o Relay		Yes	48 x 48 x 94 mm (W X H X D)		46 x 46 mm (W X H )
H4DT-10	On-Delay (8 Pin) plug-in type.	24V to 240V AC ,24V DC to 220V DC		1Secs to 10Secs		2 C/o Relay			48 x 48 x 94 mm (W X H X D)		46 x 46 mm (W X H )
H4DT-30	On-Delay (8 Pin) plug-in type.	24V to 240V AC ,24V DC to 220V DC		3Secs to 30Secs		2 C/o Relay			48 x 48 x 94 mm (W X H X D)		46 x 46 mm (W X H )
H4DT-60	On-Delay (8 Pin) plug-in type.		24V to 240V AC ,24V DC to 220V DC		6Secs to 60Secs		2 C/o Relay			48 x 48 x 94 mm (W X H X D)
