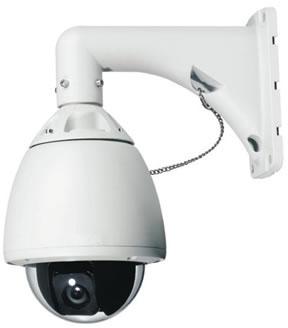

H Series Outdoor IP High Speed Dome CCD Camera

Description：
* High die-cast aluminum design can dissipate heat more sufficiently; black inner-shell makes monitor much sharper.
* Adopt 32-bit DSP processing chip with M-JPEG.
* MPEG-4 compression format, compatible with WMV media form and support common Media Player
* Independent operation system and separate PC circumstances, realize running more reliable.
* Owning auto restart function with watchdog built-in, and stop system ending thoroughly.
* Support TCP/IP, HTTP, DHCP, LAN, DSL etc.
* Built in OSD menu and support inputting with Chinese or English, Support 20-bit English character input, Display or set parameter via menu
* Auto-identify various SONY, HITACHI, LG, CNB, SAMSUNG, YOKO, etc, and auto read camera model when power on.
* The first designer of wide voltage in domestic, DC12V~AC24V, no need to identify “+” or “-”.
* Soft address design can alter long-distance ID address code, no need manual dial-up.
* Show and edit title function containing 20 English letter; independently set the titles for camera itself, as well as Preset position, Pattern scan, Auto-level scan and zone display.
* Auto flip with vertical 180° in omni-directions, no fade zone
* 200 preset positions and titles can be set.
* 4 patrol tracking routes, every can insert 32 spots
* 4 patterns scan routes and continuous track record of 1000 in action, time is up to 10 minutes;
* 4 auto levels scan routes with left & right spacing, speed can be set.
* Position-indicating function, temperature indicator function (Celsius/Fahrenheit simultaneous display), information display, information inquiry function;
* 8 dynamic privacy zones can be setup.
* 8 display zones with editable title.
* Alarm system with 4 input and 2 output channel and support the linkage (recall preset and various scan modes: Tracking, Pattern, Auto-level scan)
* Auto activation at fixed time, and can auto execute different scans and presets after a given leisure time.
* RS485 control, integrated various protocols, PELCO-D, PELCO-P, KALATEL, AD, PHILIPS, SAE, VCL etc.
* Built-in temperature-controlled heating system and the speed fan
* 3 class lightning defend, built in 3000V lightning proof, surge resistant.
* IP 66 outer cover with all day protection.
