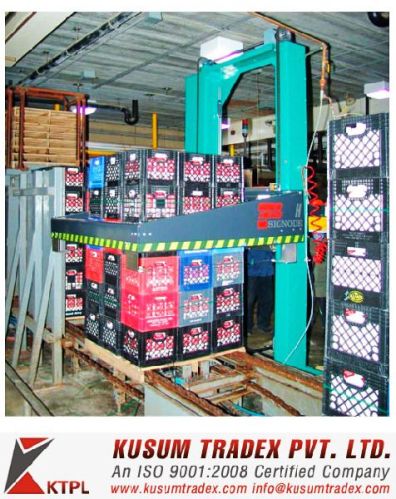

H Strapping Machine

The machine is built as standard with heavy duty, full steel strap chute and chute flaps for high-speed strap feeding and strap guide bands for accurate horizontal strap positioning onto the load. The standard strapping MH head is designed for heavy-duty 9 -12mm Tenax® PET polyester and Dylastic® PP strapping. High strap tension version for 16mm strapping.
It features the easy-load, powered dispensers with automatic strap feed-up into the sealing unit.. The whole unit has a simple easy, to use free-standing machine control panel.
The MH-H can be used in a wide range of applications in the Construction, Furniture, Bottle, Logistics and Appliance segments to name but a few.
Features and benefits
Optimum pack protection
Torque motor drive for both outrigger and chute ensures optimum approach speed for maximum pack protection.
Easy to adjust
Up to 8 different strapping positions can be set in 8 different programmes as standard during commissioning in order to apply different strapping patterns to a range of products.
Easy to use
Simple intuitive HMI touch-screen panel to adjust al machine parameters, to provide pre-warnings, service assistance and service diagnosis without a programming unit.

Greater machine availability
Strap auto-load and auto-rewind facilities, plus quick-change strap dispenser system significantly reduces downtime when changing strap coils. Modular head systems enable units to be exchanged within 2 minutes for optimum machine uptime.
Adjustable strap tension
Offers tension levels from 100 to 900N for 9-11 mm and for 13- 16mm strapping up to 2.000N strap tension.
