    H05V R Type Cable, Brand Name : Johnson
    • H05V R Type Cable
    • 2631999

    H05V R Type Cable, Brand Name : Johnson

    Get Latest Price
    • MOQ5000 Meter
    • Brand NameJohnsoncab
    • Voltage300/500V
    • Country of OriginIndia
    • Operating Temperature Range-15°C to +70°C
    • Supply TypeManufacturer, Exporter, Supplier, Importer
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    Johnsoncab Electricals Pvt. Ltd.verified-icon
    location Mahesana, Gujarat
    View Number
    • calendar Member Since 1 Year
    • building Nature of Business Manufacturer
    • gst icon GST No. 24AAFCJ0124N1ZQ

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • Brand NameJohnsoncab
    • Country of OriginIndia
    • Voltage300/500V
    • Tensile Strength Min. (N/mm²)12.50 N/mm2
    • Elongation at Break Min. (%)150
    • Volume Resistivity at 27°C Min.x 10 Ω-cm
    • Flame PropagationFlame Retardant test as per IEC 60332-1
    • Minimum Bending Radius≥6 X Cable Dia
    • Short Circuit Temperature160°C
    • Operating Temperature Range-15°C to +70°C
    • Test Voltage2000 V

    SINGLE CORE PVC TYPE TI 1 INSULATED NON SHEATHED CABLE FOR INTERNAL WIRING
    Applications :

    • H05V-R Cable is used for the installed in a fixed installation mechanically protected, inside a distribution and control device.


    Insulation Color Code :

    • Black
    • Blue
    • Brown
    • Gray
    • Orange
    • Pink
    • Red
    • Violet
    • White
    • Green
    • Green/Yellow
    • Yellow
    • Or as per customer requirement

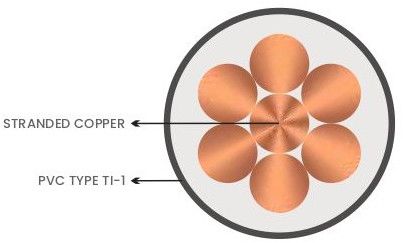

    Cable Construction :

    • Conductor : Class 2 Stranded Plain Copper IEC 60228
    • Insulation : Special PVC type TI 1 to EN 50363-3


    Features :

    • Design for Harmonized Acc. to European Standards
    • Very good Heat Resistance Property for Insulation
    • Special Grade Insulation PVC type TI 1 to EN 50363-3
    • Very good Insulation Resistance Property
    • Excellent Mechanical & Electricals property
    • Very good Current carring capacity
    • Very good Tharmal property for Insulation
    • Flame Retardant


    Packing Details :

    • 100 Meter
    • 200 Meter
    • 500 Meter
    • 1000 Meter
    • 2000 Meter
    • or As per Customer Requirement


    Specifications


    Download Detail File : Click Here
