H05V U Type Cable, Brand Name : Johnson

SINGLE CORE PVC TI 1 TYPE INSULATED NON SHEATHED CABLE FOR INTERNAL WIRING
Applications :

• H05V-U U Cable is used for the internal wiring in lighting applications. It can also be used in electronic appliances for measuring, regulating and controlling.

Insulation Color Code :

• Black
• Blue
• Brown
• Gray
• Orange
• Pink
• Red
• Violet
• White
• Green
• Green/Yellow
• Or as per customer requirement.

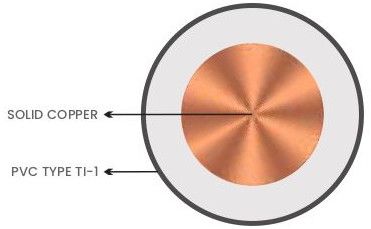

Cable Construction :

• Conductor : Class 1 Solid bare Copper IEC 60228
• Insulation : PVC type TI 1 to EN 50363-3

Features :

• Design for Harmonized Acc. to European Standards
• Very good Insulation Resistance Property
• Special Grade Insulation PVC type TI 1 to EN 50363-3
• Excellent Mechanical & Electricals property
• Very good Current carring capacity
• Very good Tharmal property for Insulation
• Flame Retardant

Packing Details

• 100 Meter
• 200 Meter
• 500 Meter
• 1000 Meter
• 2000 Meter
• or As per Customer Requirement
