H05Z K Type Cable, Brand Name : Johnson

NON CORROSIVE NON TOXIC POLYOLEFIN CROSS LINK LSZH HEAT RESISTANT INSULATED NON SHEATHED
Applications :
LSZH Wiring For Appliances with maximum operating temperature of 90°C and generally in areas such as public and government building where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gases when burnt which is particularly important where electronic equipment is installed.
Insulation Color Code :

• Black
• Blue
• Brown
• Gray
• Orange
• Pink
• Red
• Violet
• White
• Green
• Green/Yellow
• Yellow
• Or as per customer requirement.

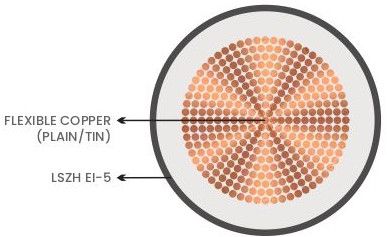

Cable Construction :

• Conductor : Class 5 Flexible plain/Tin coated multi Strands Copper IEC 60228
• Insulation : Polyolefin Cross Link LSZH type EI 5 to EN 50363-5

Features :

• Design for Harmonized Acc. to European Standards
• Polyolefin Cross Link LSZH type EI 5 to EN 50363-5
• Special LSZH Heat Resistance Thermosetting Insulation
• Very good Insulation Resistance property
• High current carrying capacity
• LSZH and ozone Resistance Insulation Material
• Very good fire retardant property
• Non Corrosive Non Toxic LSZH Heat Resistant Insulation
• Long Flex Life
• Excellent Mechanical & Electrical Property
• Excellent Resistance to Moisture, Abrasion, Grace, Oil
• Flame Retardant

Packing Details :

• 100 Meter
• 200 Meter
• 500 Meter
• 1000 Meter
• 2000 Meter
• or As per Customer Requirement
