H07V2 K Type Cable, Brand Name : Johnson

SINGLE CORE HEAT RESISTANCE HR PVC TI 3 TYPE INSULATED NON SHEATHED CABLE FOR INTERNAL WIRING
Applications :
H05V2-K & H07V2-K Cable is used for the internal wiring in lighting applications. It can also be used in electronic appliances for measuring, regulating and controlling.
Insulation Color Code :

• Black
• Blue
• Brown
• Gray
• Orange
• Pink
• Red
• Violet
• White
• Green
• Green/Yellow
• Or as per customer requirement.

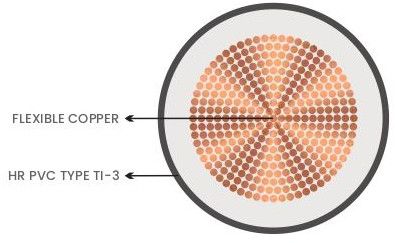

Cable Construction :

• Conductor : Class 5 Flexible bare Copper IEC 60228
• Insulation : Heat Resistance PVC type TI 3 to EN 50363-3

Features :

• Design for Harmonized Acc. to European Standards
• Very good Heat Resistance Property for Insulation
• Special Grade Insulation PVC type TI 3 to EN 50363-3
• Very good Insulation Resistance Property
• Excellent Mechanical & Electricals property
• Very good Current carring capacity
• Very good Tharmal property for Insulatio

Packing Details :

• 100 Meter
• 200 Meter
• 500 Meter
• 1000 Meter
• 2000 Meter
• or As per Customer Requirement
