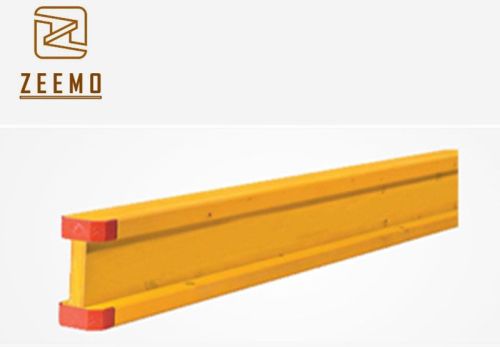

H20 Slab Table Formwork Yellow Timber Beam

₹ 8,811 / set

MOQ1000 set
Brand Namezeemo
Country of OriginChina
Warranty1year
Rib Distance200mm
Supply TypeManufacturer
Preferred Buyer Location China only

Product Details

Brand Namezeemo
Country of OriginChina
Size5.9m length
lengthcustomized
Dimensioncustomized
Materialspruse and plywood
Surface Typepainting
thickness80mm
Rib Distance200mm
Warranty1year
width200mm

Timber beam is a very important part of formwork system and has been widely applied in construction.Not only used in wall / column / slab / core formwork in High rise commercial project, but also in public infra such as Bridge /Tunnel/ Airport/ Powerplant/ water treatment etc.

1.Flange is made of imported Finnish spruce.Web is made of Plywood , WBP adhesive

2.Two ends of each beam could be sealed with plastic cap or steel cap to protect it from moisture, crash,or harm to labor.

3.Yellow Waterproof painting.

4.EN13377 Standard qualified.

Shear Resistance	23.9 kN
Bearing Resistance	47.8 kN
Bending Resistance	10.9 kNm
Timber type	Sawn Timber Construction Wood
Advantage	Eco-friendly Material
Port	QINGDAO
