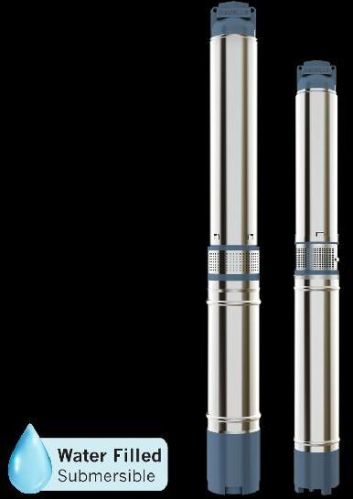

H3 H4 Series Water Filled SUBMERSIBLE PUMP

₹ 27,300 / Piece

Power1.1 kW (1.5 HP)
Dynamically balanced rotorYes
Power supply cableYes
Net contents1 N pump set, 1 N power cord of 5 m length, 1 N instruction manual, 1 N warranty card
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
Preferred Buyer Location All over the world

Company Information

Ask for more detail from the seller

Report incorrect details

Power1.1 kW (1.5 HP)
Pump motor coupling as per nema standardYes
Suitable forSingle Phase supply
ShaftStainless Steel (SS-410)
Direction of rotatingAnti-clockwise when viewed from driving end
Power supply cableYes
Motor statorHigh grade CRNO stampings
Dynamically balanced rotorYes
Packaging dimensions WxHxD (cm)11.5 cm x 21.8 cm x 86.5 cm
Pipe size32 mm
Low power consumptionYes
Motor casingStainless Steel tube
Guarantee1 Year
Motor speed2900 Revolution per minute
Rated frequency50 Hz
Net contents1 N pump set, 1 N power cord of 5 m length, 1 N instruction manual, 1 N warranty card
Winding typePVC insulated Copper winding
ImpellerNoryl
Motor bodySS / Special grade Cast Iron
ApplicationsApartments, bungalows, farm-houses, building construction, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, industrial water circulation
Voltage operating range180 V to 240 V
Maximum working pressure11.5 kg / cm²
Operating water temperatureup to 65 °C
