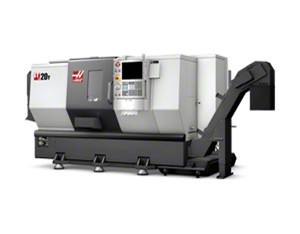

HAAS ST 20 CNC Machine Tools

Front Apron 31.75 " 806 mm Cross Slide 20.75 " 527 mm Tailstock 23.0 " 584 mm CAPACITIES Chuck Size 8.3 " 210 mm Max Cutting Diameter 15.0 " 381 mm Max Cutting Length 21 " 533 mm Bar Capacity 2.0 " 51 mm TRAVELS & FEEDRATES X Axis 9.3 " 236 mm Z Axis 21.0 " 533 mm Rapids on X 945 inmin 24.0 mmin Rapids on Z 945 inmin 24.0 mmin Max Thrust X 4100 lb 18238 N Max Thrust Z 5100 lb 22686 N SPINDLE Max Rating 20 hp 14.9 kW Max Speed 4000 rpm 4000 rpm Max Torque 150 ft-lb @ 500 rpm 203 Nm @ 500 rpm Spindle Nose A2-6 A2-6 Spindle Bore ø 3.50 " 88.9 mm
