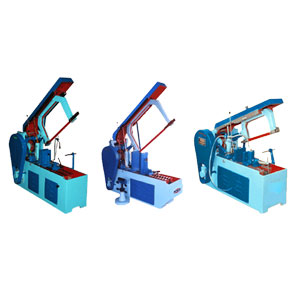

Hack Saw Machine

HPSM’ deals with latest technologies based cutting machines that have been designed to make industrial tasks easier, faster and error free. We are a renowned manufacturer, supplier and exporter of Hacksaw Machines which are appreciated for their smooth & swift functioning ability, high efficiency, fine cutting and long lasting trouble free service, durability, reasonable rates.

STANDARD ACCESSORIES

Introduction

“Matchless” Brand Hydraulic Control Hacksaw Machine has been designed to cut quickly & accurately all material from nickel chrome steel to plastic, controls are simple & easy. An automatic cut out operates at the completion of the operation & The bow slide returns to the top position, The machines has attractive appearance.

Saw Frame

“Matchless” Brand Hydraulic Control Hacksaw Machine has been designed to cut quickly & accurately all material from nickel chrome steel to plastic, controls are simple & easy. An automatic cut out operates at the completion of the operation & The bow slide returns to the top position, The machines has attractive appearance.

Speed

Two speeds has been provided in order to make it suitable for all metals. High speed for metals like mild steel, brass, copper etc and low speed for cast iron.

Vice

The vice is rigid construction. The one jaw remains fixed while other can be adjusted according to the size of the material to be cut.

Electricals

Push button starter is fitted with an adjustable trip mechansim which stops the machine soon after the blade is clear from work at extra cost.

Bed

The bed is of rigid casting with a wide through for collection of coolant, swarf & also houses the V-belts device, bed is single piece casting.

The Drive

The drive is given to the machine through V-Pullys with provision to adjust fully the tension of the V-Belts. The shafts are fitted with taper and ball bearings which eliminate friction.

Feed Saw

Feed saw is controlled hydraulically by two levers provided at the dash-pot. One controls the rate of feed, while the other enables the bow slide to be raised or lowered and the motor gets switched off on completion of the cut.

Coolant

The coolant tank is totally enclosed in the machine base with a constant speed pump which continuously supplies coolant to the saw blade.
