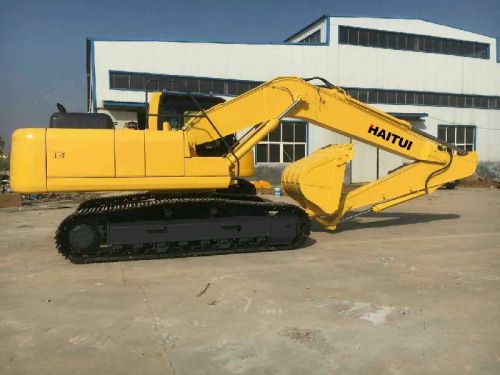

Crawlwer Steel HAITUI HE240-8 Crawler Excavator

Model HE240.8
Weight 23.6
Bucekt capacity(m3) 1-1.2
Engine Model CUMMINS B5.9-C
Power(kwrmin) 1332000
Fuel Tank capacity(L) 350
Tracking speed(kmh) 5.23.5
turing speed(rmin) 11.1
Climbing ability(%) 70
bucket digging force(KN) ISO 159
Ground Pressure(KPa) 48.6
Hydrauli Pump Model K3V112DT
Maximum Flow�Lmin) 226*2
Operation Pressure(MPa) 34.3
Oil Tank Capacity(L) 246
A-Overall Length(mm) 9740
B-Overall Width(mm) 2980
C-Overall Height(Arm top)(mm) 3190
D-Overall Hight(CAB top)(mm) 3120
E-Loading Weight distance from ground(mm) 1065
F-Minimum Distance (mm) 442
G-End turning radius(mm) 2810
H-Track shoe length on ground(mm) 3640
J-track shoe assy length(mm) 4450
K-track distance(mm) 2380
L-track shoe assy width(mm) 2980
M-track shoe wideth(mm) 600
N-turning platform width(mm) 2700
O-Maximum digginig height(mm) 9310
P-Maximum unLoading Height(mm) 6440
Q-Maximum digging depth(mm) 6875
R-Maxium Vertical digging depth(mm) 5860
S-Maximum digging depth for transverse plane 2.5 m (mm) 6680
T-Maximum diging distance 10170
U-Maximum digging distance at horizontal plane(mm) 9990
V-Minimum Turning Radius(mm) 3975
W-Maximum height at minimum turning radius.(mm) 7775
X-The distance from turning center to back tail end(mm) 2810
Z-Load weight height(mm) 2120
A1-Ground distance(On transportation)(mm) 5165
Bucket dipper distance (mm) 3050
Arm length(mm) 5850
