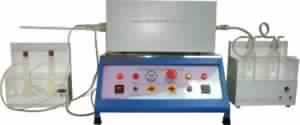

Halogen Acid Gas Emission Test Apparatus ( Digital Flow Meter)

Get Latest Price

Model: SSI 518 HAGD (Halogen Acid Gas Emission Tester with Digital Flow Indicator)
Air Flow: Controlled Air Flow using needle valve
Air Flow indicator: Digital using air flow sensor, LC 0.01 LPM
Packing: In three wooden boxes
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

S.S. Instruments Pvt. Ltd.

Laxmi Nagar, Delhi

View Number

Member Since 16 Years
Nature of Business Retailer
Year of Establishment 1985

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Air Flow indicator: Digital using air flow sensor, LC 0.01 LPM
Air Flow: Controlled Air Flow using needle valve
Temperature Range: Ambient to 1000oC, LC 1oC
Delivery: 4 to 6 weeks from Order
Model: SSI 518 HAGD (Halogen Acid Gas Emission Tester with Digital Flow Indicator)
Packing: In three wooden boxes
Combustion Tube / Boat: Made of Quartz, capable of withstanding temperatures up to 1200oC
Temperature Control: Using PID Digital Temperature Controller with RAMP facility
Glass Ware: Air Drying Bottles, Air Collection Bottles with bottle stand and magnetic Stirrer
Furance: Tubular Furnace 50 mm Dia

Model Number: SSI 518 HAGD

Standard Number: IEC: 60754 Pt 1 & 2, IS: 10810 Pt 59

Instrument Principle

Compounds based on halogenated polymers and compounds containing halogenated additives emits harmful Halogen Acid Gas while burning. These gases are corrosive and can prove harmful to property and humans in case of fire. IS 18010 (Pt. 59) & IEC 754-1-94 test determine the amount of Halogen gas other than hydrofluoric acid evolved during the combustion of cables and other similar compounds.

Standard

The instrument is manufactured as per the IEC 60754 – 2 fig 4 or IS 10810 Pt 59.

Instrument

The instrument comprising of

Tubular Furnace for temp. up to 1000oC +- 10oC.
PID Digital Temp. Indicating Controller.
Digital Flow Indicator to monitor Air Flow. The flow can be regulated using with needle valve.
Quartz tube and Quartz boat for keeping samples – one each.
Gas Washing Bottles – 2 nos.
Magnetic stirrer.
Ph Indicator ( for zero Halogen) (optional)
Conductivity Indicator (for zero Halogen) (optional)
