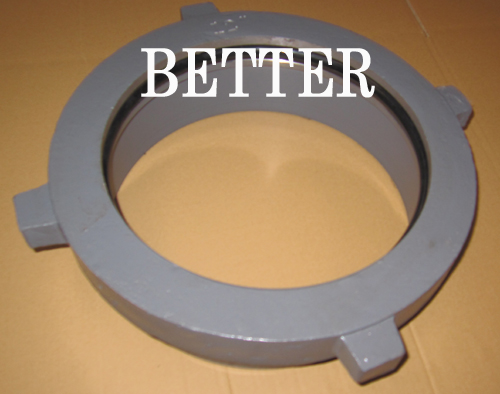

Hammer Seal Union

We are offering hammer seal union. Better mud tank union is an updated design based on air grip unions. These tank unions can accept pipe misalignment to finish an excellent connecting and sealing, and installation and uninstall rapidly, which has been widely used in mud tanks, mud tank connecting lines, and pump suction flanges.
features
• elongated cross-section of seal ring ensures greater sealing surface when in contact with the pipe
• makes up with hammer
• molded nitrile seal provides a compression seal
• tank union accepts up to 7° pipe misalignment
• available in 6, 8, 10, and 12 inch sizes
• 6”, 8”, 10” unions may be socket welded or butt welded to piping.12” unions require butt-weld only
• large diameter, medium-low voltage and frequently dismantling, rapid installation.
technical parameter:
1. medium available: mud, oil, water
2. medium temperature:0°c~90°c
3. ambient temperature:-30°c~50°c
4. medium presssure:0.6mpa
please don’t hesitate to contact our sales if you are interested in any of our products.
