Hand-Arm Whole-Body Sensors for Machine Vibration Monitoring

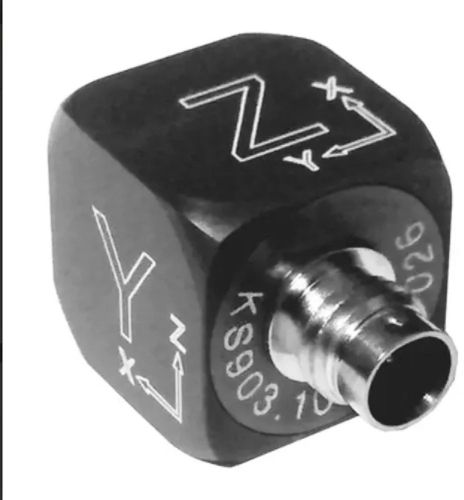

The PCE-VM 31-HAWB Condition Monitoring Human Vibration Meter is designed for measuring human vibration at the workplace. The Condition Monitoring Vibration Meter can calculate hand-arm vibration measurements according to ISO 5349 and whole-body vibration measurements according to ISO 2631. Each sensor consists of a triaxial vibration meter that captures acceleration, velocity, and displacement measurements.

In addition to human vibration measurements, the vibration meter or vibration analyzer can measure the vibrations of machines. The vibration analyzer also supports TEDS, which means it can detect and identify TEDS-capable sensors automatically. Overall, the device comes with 4 independent measuring channels.

The measured data can be displayed as interval, running, or maximum RMS (MTVV), as well as estimated vibration dose value (eVDV), vector sum, peak, and maximum peak. Acceleration can also be displayed as FFT with up to 125 lines. The internal flash memory of the vibration analyzer can store up to 10,000 measurements or up to 1,000 FFTs, each with date, time, and a comment. Measured data can also be transferred to a PC via the USB 2.0 interface.

Key Features:

• Tri-axial measurement (Xh, Yh, Zh axes) of hand-arm and whole-body human vibration
•  Hand-Arm Vibration Syndrome (HAVS) and carpal tunnel syndrome risk assessment, measuring exposure action values (EAVs) and exposure limit values (ELVs), compliant with regulations
•  Velocity, acceleration, displacement measurements
• 3-channel FFT
• TEDS support
• Flash memory for up to 10,000 readings
•  USB interface
• Compact design
• Easy to use – ISO 8041 calibration certificate option available (see accessories)
