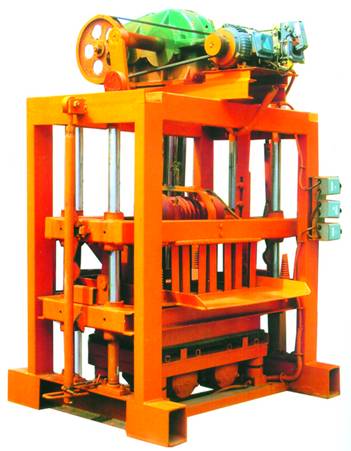

Hand Operated Brick Making Machine

We are offering Hand Operated Brick Making Machine.
This kind of brick-making machine is featured by compact structure, which is easy to operate and maintain. In addition, it is characterized by low investment and quick benefit. And, it is widely applied for production of the solid brick and hollow brick
main technical characteristics:
1. Multi-purpose, main machine equipped with different molds can produce various kinds of products, such as hollow block, standard brick, etc.
2. Compact and simple structure, easy to operate and maintain.
3. Strong vibrating force, resulting in superior brick molding, and high brick density.
4. Low investment and high benefit.
Technical parameters:
outline dimension 1,100 � 1,860 � 2,100 mm
pallet dimension 850 � 600 � 40 mm
molding cycle 40 seconds/time
main machine power 9.6 kw
weight of machine 1.5 t
output table (for reference only, the mold can be customized according to the customer�s demands; therefore, the output will change accordingly)
product type
spec & size (l � w � h) qty./mold production capability (daily)
hollow block 390 � 190 � 190 mm 4 pcs 1,500 ~ 2,200 pcs
standard brick 240 x 115 x 53 mm 26 pcs 12,800 ~ 16,000 pcs.
