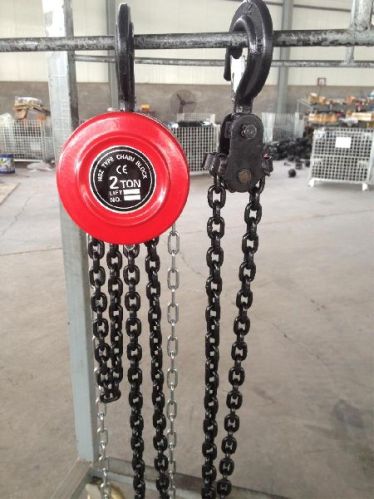

Contact SupplierHSZ type chain hoist is a widely used manual hoisting machinary which is easy to use and carry. It can be used in factory, mine, agriculture, electricity, construction site, wharf and dock. And it can also be used in installing of machinery, lifting,loading and unloading in the warehouse,especially suitable to be used in the open air and the place without power source.  Features  1) Capacity: Frol 0.5T --30Ton  2) with Automatic braking system  3) Double cover protection  4) need Low efforts to lift maximum load  5) Fully forged Hooks  6) with Double pawls  7) with G80 load chains of high quality  8) Load chains can be galvanized/blacked as per option.  Specification  Model  HSZ-0.5 HSZ-1 HSZ-1.5  HSZ-2 HSZ-3 HSZ-5 HSZ-10 HSZ-20 Capacity t 0.5 1 1.5 2 3 5 10 20 Lift Height m 3 3 3 3 3 3 3 3 Test Load t 1.25 2 2.5 4 6.3 12.5 Mini Dis Between Hooks 280    320 390 410 485 600 820 1040 Hand effort for full pulling load N 210 340 420 360 450 470 450 450  Load chain fall lines  1 2 2 2 2 4 8 N.W. Kg 9 9 11 11 21 32 68 154 G.W. Kg 10 10 12 12 22 33 70 158.
