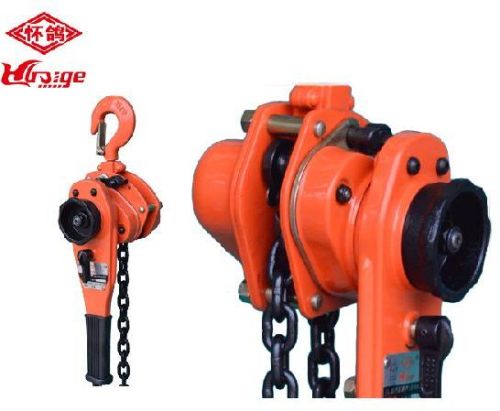

Hand Operated Chain Hoist 1.5 Ton Lever Block

hand operated chain hoist 1.5 ton lever block The lever block is made of high strength low carbon alloy steel, High elastic spring with double pawl brake system design featuring stable operation and smooth braking. We design sealed guide chain construction to ensure the load chain running safely. The top and bottom hook are made of forged high strength alloy, accomplished by heat treatment process. The hooks also have three stretch indicators. However if by any chance the hook is overloaded there is no fear of it breaking, it will simply gradually start straightening out, avoiding any load drop or personal injury. Within auto-clutch,worker can handle the load chain with one hand when there is No-Load. Model Capacity(T) Standard lift(M) Running test load(T) No. of falls of load chain Load chain Diameter(MM) Dimension(MM) Net weight(KG)   A B C VL 0.75T 0.75 1.5 1.125 1 6.3 155 88 135 6.6 VL 1.5T 1.5 1.5 2.25 1 7.1 170 110 162 11 VL 3T 3 1.5 4.5 1 9 198 120 211 17 VL 6T 6 1.5 9 2 9 198 120 254 27.5 VL 9T 9 1.5 13.5 3 9 198 120 319 47 hand operated chain hoist 1.5 ton lever block 1. The lever hoist with tight structure and graceful outline and its weight is light. People can operate it easily even in narrow place.2. The handle with human engineering design is easy to handle.3. The braking mechanism, which makes up heart of the hoist, is enclosed in a double cover: the wheel and the brake covers. These protective covers not only keep out weather
