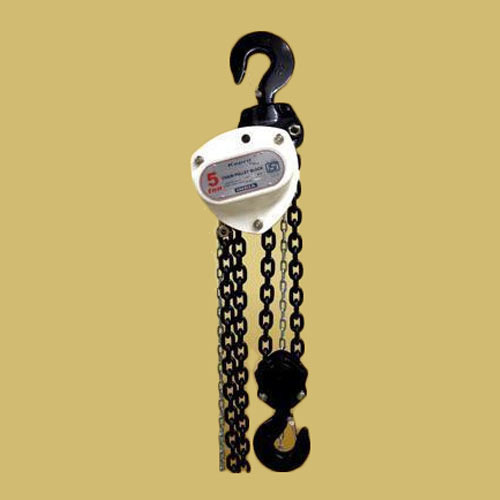

Hand Operated Chain Pulley Block

₹ 7,450 / Piece

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Leveraging on our enormous business competency and huge info of this field, we have brought forth a vast gamut of Hand Operated Chain Pulley Block. Product Details: â�¢ Best....

Company Information

Member Since 14 Years
Nature of Business Retailer
Year of Establishment 1999

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Leveraging on our enormous business competency and huge info of this field, we have brought forth a vast gamut of Hand Operated Chain Pulley Block.
Product Details:
â�¢
Best finish
â�¢
Exceptional standards
â�¢
Sturdy
â�¢
Good quality
Specification:
â�¢ Warranted for 12 months
â�¢ Minimal efforts to lift
â�¢ Smooth Function
â�¢ Sealed Bearings
â�¢ Triple spur gear
â�¢ Load chain grade 80
â�¢ Compact size
â�¢ Safety factor 4 times
â�¢ Enclosed brake mechanism
Technical Specification:
Model
KP1KP2KP3KP5 KP10 KP20
Capacity ( Tonnes)
1 2 3 5 10 20
Standard Lift (Meters)
3333
Column of Load Chain
1222
Load Chain Dia
66810
Test Load (T)
1.534.57.5
Efforts required to max. load (N)
280281291332
Dimension (mm)A152152173187
B161165188249
C350440553688
Net weight (Kg.)
12.31726.442.3
Extra weight per meter of extra lift (Kg.)
1.82.53.75.3
