METRO 100 Bar Manual Injection Pump, Size : 450 X 650 X 700

₹ 20,500 / Set

MOQ1 Set(s)
Brand NameMETRO
PowerManual
Pressure100 Bar
ApplicationManual Injection Of Epoxy Resin Or Polyurethane
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

4.4/5

Member Since 13 Years
Nature of Business Retailer
GST No. 29AAGFP4298M1ZE

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerHand Operated
Availability20 KG (Approx)
Size450 X 650 X 700
Brand NameMETRO
ApplicationManual Injection Of Epoxy Resin Or Polyurethane
PowerManual
Pressure100 Bar
StructureSteel Sructure(Foldable)
Model NumberMI-100
Place of OriginBangalore
Fluid handled10 to 1000 cps
Feed Hopper1.5 litre S.S.
ColourBlue
Output0.5 LPM

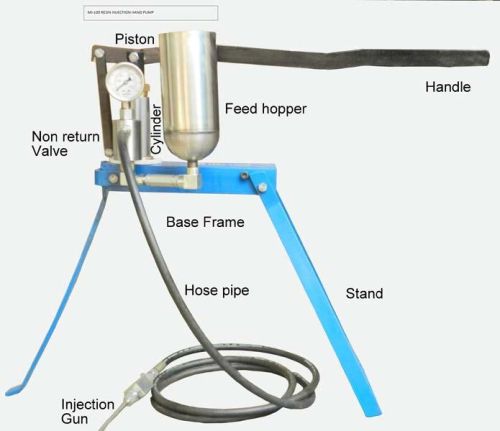

We provide mi-100 for manual injection of epoxy resin or polyurethane into the concrete structure.
mi-100 is an efficient equipment for pumping chemicals from 10- 1000 cps at 100 bar.
It is a piston operated pump.
Piston is driven by using a handle.
The handle is pressed by hand and the piston generates a high pressure on the fluid.
Proper locking of the pressure of the fluid is provided with efficient n.r.v.s and seals, which makes the pump more efficient.
The grout fluid from outlet goes with a high injection pressure and velocity.
