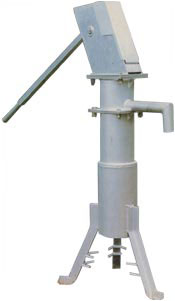

Hand Pump

Stand: The Stand flange is made from 6 mm thick MS Plate. The pipe used is 150 mm medium 'B' Class pipe. The angles are 40 x 40 x 6 mm.
Water Chamber: Top and bottom flanges are made from 6 mm thick Ms plates. Pipe holder is made from solid bars to hold 32 mm Riser Pipes.
Cylinder: 63.5 mm I.D. Cast-Iron cylinder with brass liner and cast iron caps of 32 mm thread with two nitrile rubber cup washer (leather) and Plunger rod as per IS 9301 - 1984.
Conversion Head: Side plate, back plate, front end top and bottom end plates are made from 4 mm thick MS plates. Bottom flange is made from 6 mm thick MS plates.
