Hand Push Thermoplastic Road Marking Equipment

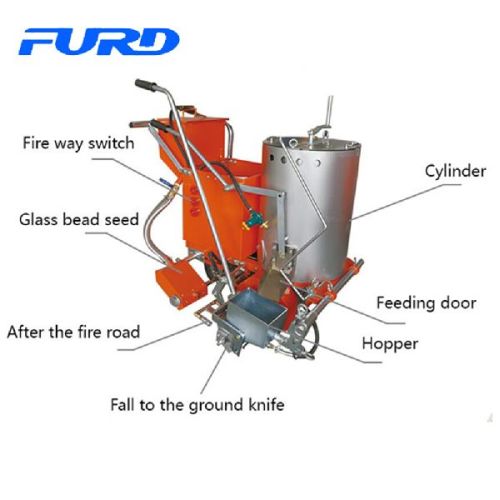

Production Description: FHX-160 hand push hot melt marking machine adopts ordinary cast iron crossed bucket, synchronous clutch glass micro bead automatic spreader has the characteristics of simple structure, light weight, excellent price and excellent performance. It  is used for marking reflective lines (straight lines, dotted lines, direction arrows, letters and symbols) on high way, city street, parking lot, factory and warehouse. Technical Specification: 1. Coating material: stainless steel outer wall and inner layer of iron galvanized heat preservation heating barrel, capacity 80kg, insert type manual stirring device, can be disassembled2. Glass beads storage box: 10kg/ box  thermoplastic road marking machine3. Glass bead spreader: manual synchronous clutch automatic sowing, spay uniform, full4. Draw a line: ordinary cast iron manufacturing, scraper type structure, standard configuration 150mm5. Fall knife: hard alloy, is provided with an eccentric sleeve device, can adjust the line thickness range: 1-2.5mm6. Rubber wheel: iron wheel, heat resistance rubber special7. Heating mode: petroleum liquefied petroleum gas8. Line width: 100/150/200/250/300mm according to the engineering requirements of different specifications to replace the underlined bucket9. Size and weight: 1260 x 880 x 1000mm10. Net weight: 110kg Model FHX-36 Marking Width 100mm,150mm,200mm,300mm,400mm Spraying Volumen 100kg/time
