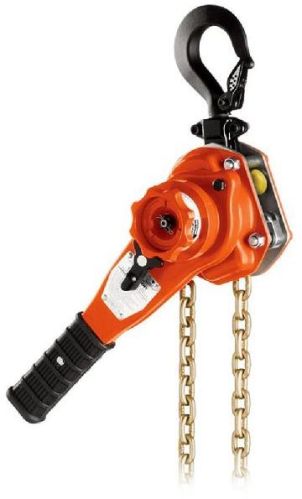

Hand Tool Safe Locking Hook Lever Hoist

Hand Tool Safe Locking Hook Lever Hoist Product Description    It's a popular type of economic lever hoist.   The lever handle is designed for high strength.   Adopt insert roller bearings.   compact design and robust, deep drawn, stamped steel constructionhigh quality materials ensure light weight without infringing reliabilityhand lever operates with little effort due to optional gear ratio. Item No. LTL-C-0.75T LTL-C-1.5T LTL-C-3T LTL-C-6T LTL-C-9T Capacity(t) 0.75 1.5 3 6 9 Standard lift(m) 1.5 1.5 1.5 1.5 1.5 Running test load(kn) 11.03 22.05 37.5 75 112.5 No.of load chain falls 1 1 1 2 3 Load Chain Dia. mm 6*18 8*24 10*30 10*30 10*30 Min.distance between hooks:Hmm 320 380 480 600 700 Length of lever handle:L mm 280 410 410 410 410 Effort required to lift Max. load(N) 140 220 320 340 360 Dimension(mm) A(mm) 148 172 200 200 203 B(mm) 90 98 115 115 115 C(mm) 136 160 180 235 316 D(mm) 30 35 40 50 85 Net weight(kg) 7 11 21 31 47 1. Our History: LITE Crane Co., LTD has focused on top quality crane parts for over 14 years in China. We started as a small operation, but now have become one of the leading suppliers in the crane industry in China. Today, LITE Crane Co., LTD has been one of the top producers of quality crane and crane parts, such as: electric hoist, single, double girder bridge, gantry, grab, casting, explosion-proof crane series and accessories.
