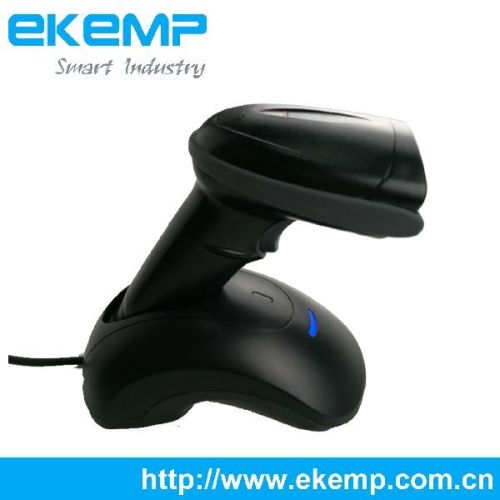

Handheld Cordless Barcode Scanner, Brand Name : EKEMP

Physical Characteristics
Dimensions
180mm x 95mm x 70mm
Weight
212g
Voltage and Electric Current
5 VDC +-10% @ 400 mA
Performance Characteristics
Image(Pixel)
640 pixels (H)x 480 pixels (V)
Light Source
Aiming: 617 nm LED; illumination: 6500K LED
Visual Field
45° (H) x 35° (V)
RollPitchYaw
360°, ±65°, ±60°
Battery Volume
4.2v2500mAh
Charging Time
8-10 h
Working Time
1 seconds scanning time, work continuously for 12 hours
Wireless Technolngy
Bluetooth v2.0
Operation Distance
100 meters (open space)
Print Contrast
25% minimum reflective difference
Interfaces
Supported
USB, RS232
Motion Tolerances
up to 25 in. (63.5 cm) per second
Decoding Capability
1D
UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.
2D
PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.
User Environment
Operating Temperature
0°C to 50°C
Storage Temperature
-40°C to 70°C
Humidity
0% to 95% relative humidity,non-condensing
Shock Specification
Designed to withstand 1.5m(5̢۪) drops
Ambient Light Immunity
100.000 Lux.
Decoding Ranges
5 mil (Code 39)
50mm-110mm
13 mil (100% Upca)
30mm-300mm
1D Minimal Resolution
4mil
Performance may be impacted by bar code quality and environmental conditions
