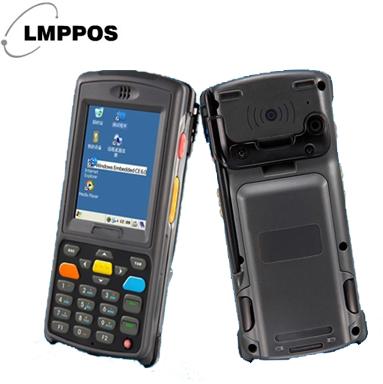

Contact SupplierWe are offering handheld data terminal.
Feature:
symbol high performance scan engine,scans various types of barcode quickly,easily and stably
wince6.0 pro
samsung arm920 @533mhz cpu&128mb memory
multiple communication ways(wifi,gsm/gprs/edge,bluetooth)
rapid remote communication(2.5g edge,download up to 85.61bps)
optional choice of rfid and barcode scanning at the same time
small volume,light weight,suitable for single hand operating
3.2m camera
physical characteristics
dimensions: 148*67*31mm
weight:300 g (with battery)
screen: 2.8″qvga tft-lcd,65k colors,backlight
keyboard: 21 silica gel numeral keyboards
battery: chargeable, 3.7v, 3200mah, lithium battery
expansion slots: microsd/tf card,maximum to 8g
sim slot : one sim slot
audio: 0.5w speaker
camera: samsung 3.2 mega pixel
performance parameters
cpu: samsung arm920t,533mhz
operating system: wince 6.0
memory: 128mb ram
expansion memory:512mb nand flash
interface: usb 2.0 (client)
environmental
operating temperature: -20°c ~ 50°c
storage temperature: -25°c ~ 70°c
humidity 5%rh-95%rh(non-condensing)
dropping survive 1.2m drop test on six sides(concrete floor, under operating temperature)
environmental seal ip54
wifi
wireless wan:
gsm/gprs/edge(850,900,1800,1900mhz), download/upload speed: 85.61/42.8bps
wireless lan:wifi ieee 802.11 b/g
wireless pan:bluetooth 2.0
data acquisition
barcode 1d:
symbol se955,laser)upc/ean, code128, code39, code93, code11, interleaved 2 of 5, discrete 2 of 5, chinese 2 of 5, codabar, msi, rss, ect.2d(symbol se4500,coms, soft decoding):data matrix, qr code, aztec code, pdf417, us planet, uk postal, ect.
rfid:high frequency 13.56mhz,iso14443a/iso15693(optional).
