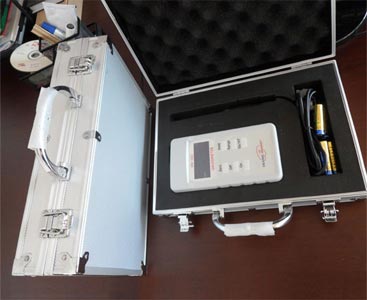

Handheld Gauss Meter

We are offering dx-102 handheld gauss meter. Dx-102 hand-held gauss meter is a dsp designed portable gauss meter, based on the latest technology of hall-effect measuring instruments for measurement of the magnetic field strength. It has a maximum range up to 0 - ± 30mt, 0 - ± 300mt, 0 - ± 3000mt, and a minimum basic accuracy up to 1.0%, as well as powerful test and display function, easy to carry. It is the best on-site surface magnetic field measuring instrument.
application:
measurement of surface magnetic field, dc coil magnetic field, air-gap magetic field of dc electromagnet.
features:
1. Onekey zero adjustment automatically
2. Measuring range change automatically
3. Lock the change of peak and relatative mode.
4. Beautiful appearance, clear dot matrix frequency display
5. Calibrated by standard magnetic field.
6. Low carbon saving energy due to low-voltage circuit design.
7. High accuracy and linearity using imported gaas-hall sensor
8. Power off automatically
9. Peak holding
10. Polarity identifying
technical parameters:
power supply
6v battery
measuring range
0-±30.0mt,0-±300mt,0-±3000mt
three gears,gear shifting automatically
accuracy
more than 1.0% (full scale)
resolution
0.1 mt(1gs)
working condition
temp.: 0~50ºc, humidity:35~80%
normal probe
0.65mm(d)×3.5mm(w) senstive area:0.5x0.5mm 1gs
thin probe
0.32mm(d)×1.2mm(w) senstive area:0.25x0.25mm 1gs
dimension
170mm×90mm×40m
weight
450g
