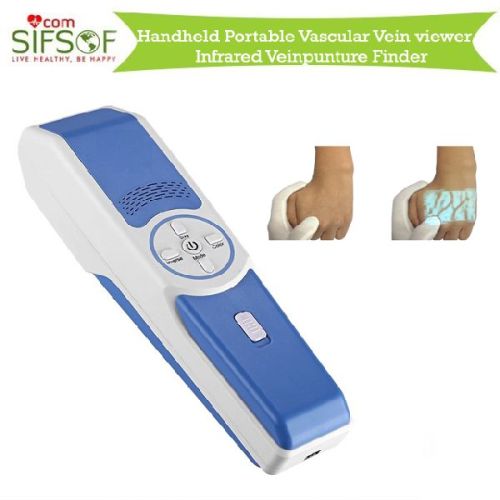

Handheld Infrared Vein Finder Handheld : SIFVEIN-4.2

₹ 2.72 Lakh / Piece

MOQ1000 Piece(s)
Handheld infrared vein finder Handheld : SIFVEIN-4.2Blood Analysis System
Supply TypeExporter, Supplier
Preferred Buyer Location All Countries Except India

Type: Blood Analysis System Light type: Near-infrared light Infrared wavelengths: 850 nm Image resolution: 720*480 Visible Vein Size: ....

Company Information

Member Since 12 Years
Nature of Business Supplier
Year of Establishment 2005

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Type: Blood Analysis System

Light type: Near-infrared light

Infrared wavelengths: 850 nm

Image resolution: 720*480

Visible Vein Size: ≥1mm

Accuracy: 0.25mm

Depth of Visible Vein: ≤12mm

Best projection distance: 200±20mm

Image frame rate: 20FPS

For quantity discounts Please call : +1-323 988 5889

Description:

Our SIFVEIN-4.2 is the handheld version of vascular imaging navigation instruments; The products adopt the design of mobile chassis so that the support structure can easily move;

THE PRODUCTS CARRY LARGE CAPACIY OF LITHIUM BATTERY COMPARTMENT TO ACHIEVE LONG LIFE.
THE SIFVEIN-4.2 TYPE OF PRODUCTS ARE DESIGNED SPECIALLY AIMING TO HEALTH CARE STAFF HAVING MOBILE REQUIREMENTS AND THE MOBILE CHASSIS OF THE BRACKET IS STABLE AND FIRM;
ALSO ACCESSORIES, SUCH AS PERSONALIZED PUSHING HANDS AND STORAGE BASKET, ETC. ARE EQUIPPED;
HOVER BRACKET FOR UNIVERSAL POSITION AND MULTI-JOINT ADJUSTABLE MECHANISMS ARE EQUIPPED WITH FEATURES, FOR EXAMPLE HIGH FLEXIBILITY AND EASY TO OPERATE AND SO ON. WE SUGGEST THE PRODUCTS TO BE USED IN MEDICAL ENVIRONMENTS SUCH AS WARDS AND EMERGENCY ROOMS, ETC. WITH MOBILE REQUIREMENTS.

SPECIFICATIONS & PARAMETERS

The main body of SIFVEIN-4.2 handheld vein Finder instruments consists of four parts, including host part, power adapter, charger holder.
The mobile and fix support is optional for SIFVEIN-4.2

TECHNICAL SPECIFICATIONS:

Light type: Near-infrared light
Infrared wavelengths: 850 nm
Image resolution: 720*480
Visible Vein Size: ≥1mm
Accuracy: 0.25mm
Depth of Visible Vein: ≤12mm
Best projection distance: 200±20mm
Image frame rate: 20FPS
LED lifetime: 20000 hours
Power Supply: DC 5V ≤3.5W
Weight: 450g
Dimension: 240x60x60mm (LxWxH)
Battery volume: 4400mAH
Battery working time: ≈ 5 hours
Charging time: ≈ 3 hours
Battery detachable: Yes
