Handheld Terminal

We are offering handheld terminal.
Description

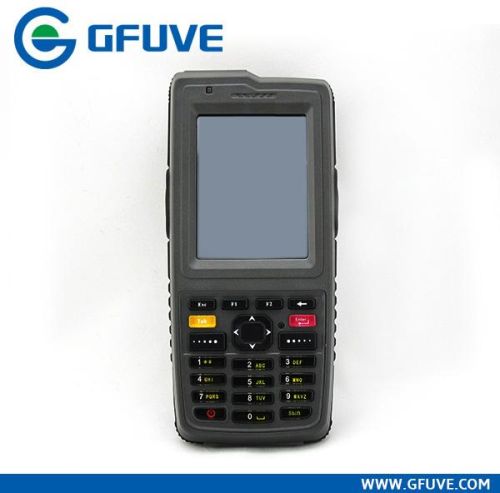

gf1100 is the best cost performance handheld terminal made by gfuve, it can be used in many field, like reading electric meters (ir or rf), reading barcodes for management, also can be used a data collecting machine. Its ip54 protection level and stable & reliable wince 6.0 operation system makes it to be your good assistant.
Overview
operation system: wince 6.0
scan module: 1d barcodeirda
wireless communication: wifibluetoothgprs
features
� support usb2.0, rs232, irda;
� support wifi, bluetooth, gprs;
� support 433m868m915m rfid module;
� support 13.56m module;
� support gps application;
� support micro sd card support 32gb;
� support all language display to develop application software
specification
specification gf1100
cpu arm926,400mhz
memory ram:512 mb
flash: 64mb
tf card can expend to32gb
display 2.8 inch tft display, 320�240piexl, 26 thousands color
keypad 21 keypads
communication usb2.0, rs232, rs485
wireless communication wifi, bluetooth, gprs are optional
scan module 1d laser, irda
physical parameter
battery 3.7v lithium battery, 2800mah
drop height range 1.2 m
weight 405g (including battery)
dimensions 160mm(l)�58 mm(w)�42mm(h)
environment
work temperature -20°c ~ + 50°c
storage temperature -30°c ~ + 70°c
work humidity 5% - 90% (without condensation)
storage humidity 5% - 95% (without condensation)
sealed classes ip54
the specifications of laser security meet iec class 2fda class�, iec60825-1en60825-1
