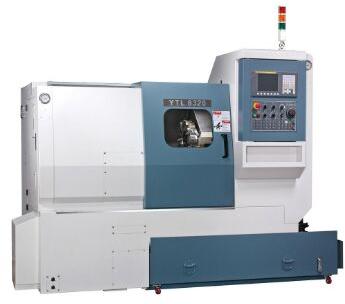

Hannsa CNC Milling Machine, Model Number : YTL-6320

HANNSA ODEL : YTL 6320 6540 Swing Over Bed: mm : Ø400 Ø400 Slant Bed : 45º 45º Over Cross Dia. : mm : Ø320 Ø320 Max. Turning Dia. : mm : Ø320 Ø320 Max. Work Length: mm : 320 540 SPINDLE Spindle Drive Motor (30 min cont.)": 11 7.5 kw (15Hp) Speed Range: rpm : 6000 4500 Spindle Nose : ASA A2-5 Chuck Size : 6" 8" Through Spindle Hole Dia. : mm : 52 62 Front Bearing Dia. :mm : 80 100 Spindle Taper: 1 20 (Quill Taper) Draw Tube Dia. :mm : 42
