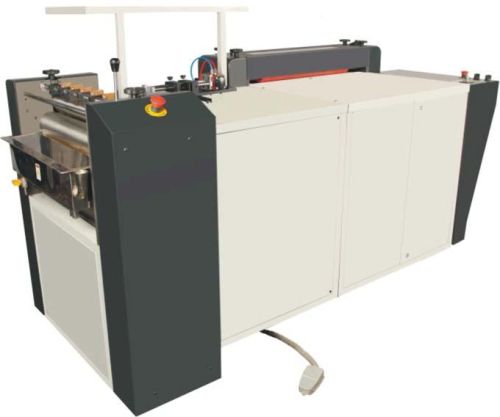

Hard Case Binding Casemaker Machine

₹ 5.50 Lakh - ₹ 5.75 Lakh / Piece

Driven TypeMechanical, Pneumatic
ConditionNew
Power6-9kw
Total Carbohydrate1year
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

4.5/5

View Number

Member Since 9 Years
Nature of Business Retailer
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of Origin440V
ConditionNew
Driven TypeMechanical, Pneumatic
Power6-9kw
Number Of FlowerCasemaker Machine
Total Carbohydrate1year

Based in Vijayawada(India), we have gained prominence in the market with our professional behavior and affordable prices. From mass to retail requirement fulfillment, we can do it all. Our organization has a widespread trading system to offer our patrons with the goods all year round and make scheduled delivery.

Sailent Featurers

No Adjustment for any thickness board.
0.0 Stainless steel rollers for permanent life.
Job makes ready time is less.
90deg spine registration systems with pneumatic system.
4 Rubber rollers with self heavy tension spring no need for
adjustment for any thickness of board.
Temperature control systems for glue melting.
All motors are geared motors for long life.
Auto Turning-in Unit without holding the case.

Techinical Specifications

Case size Max	480mm x 690mm
Case size Min	150mm x 150mm
Paper thickness	60gsm to 1.5mm(Board)
Board Thickness	1.5mm to 7mm
Turning-in Width	15mm to 40mm
Production	400 cases/Hr
Glue	Hotmelt / Cold
Power	1.25Hp (3Phase)
Heater	2Kw (Single Phase)
Pneumatic	6 – 10 bar
Dimensions	H 1150 x L 2700 x W 800 mm
Weight	750Kgs (approx).
Gluing system	Bottom
Man Power	Two
Materials	Paper, Laminated Paper, Paper Coated sheet, Rexin etc.
